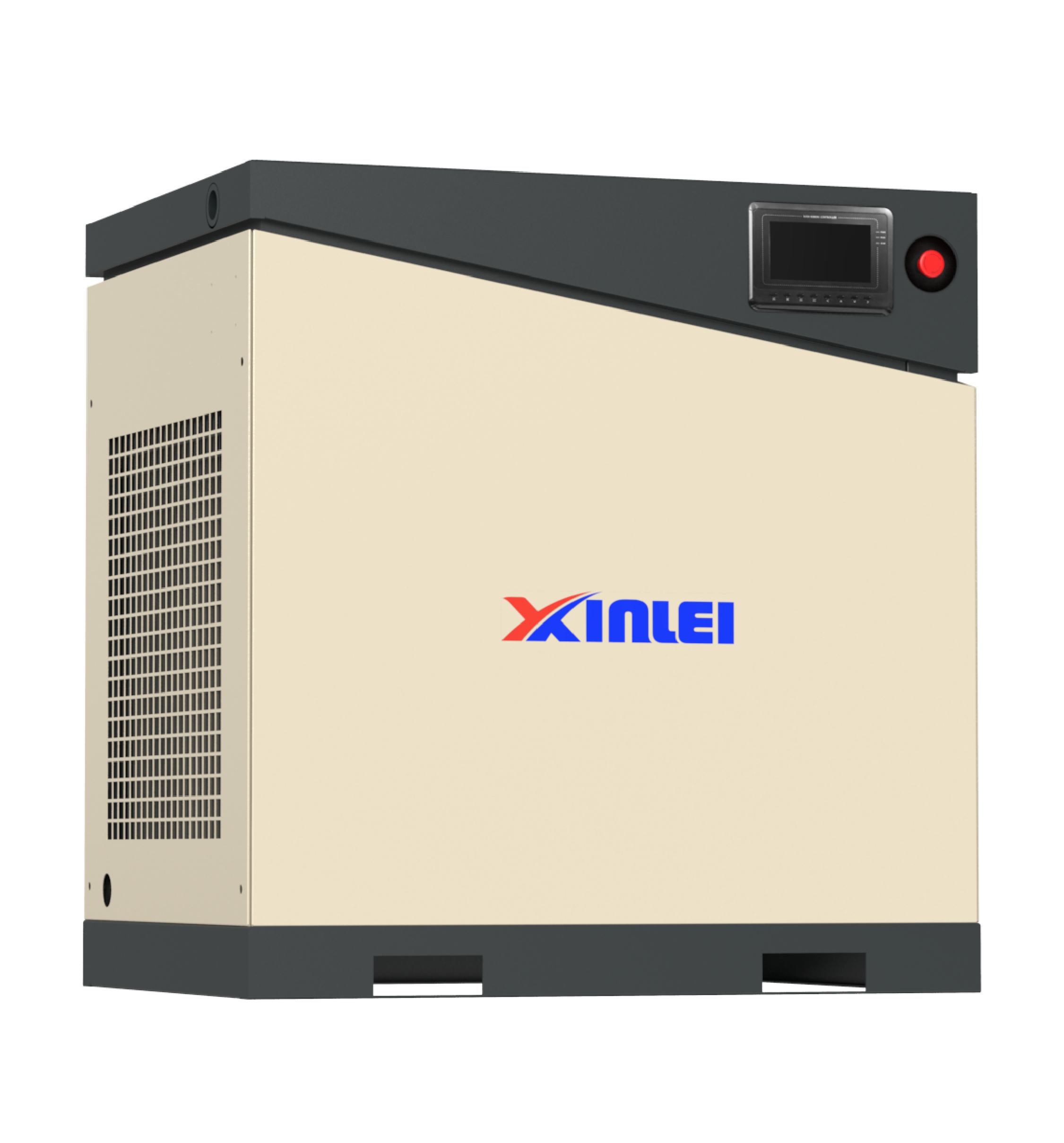

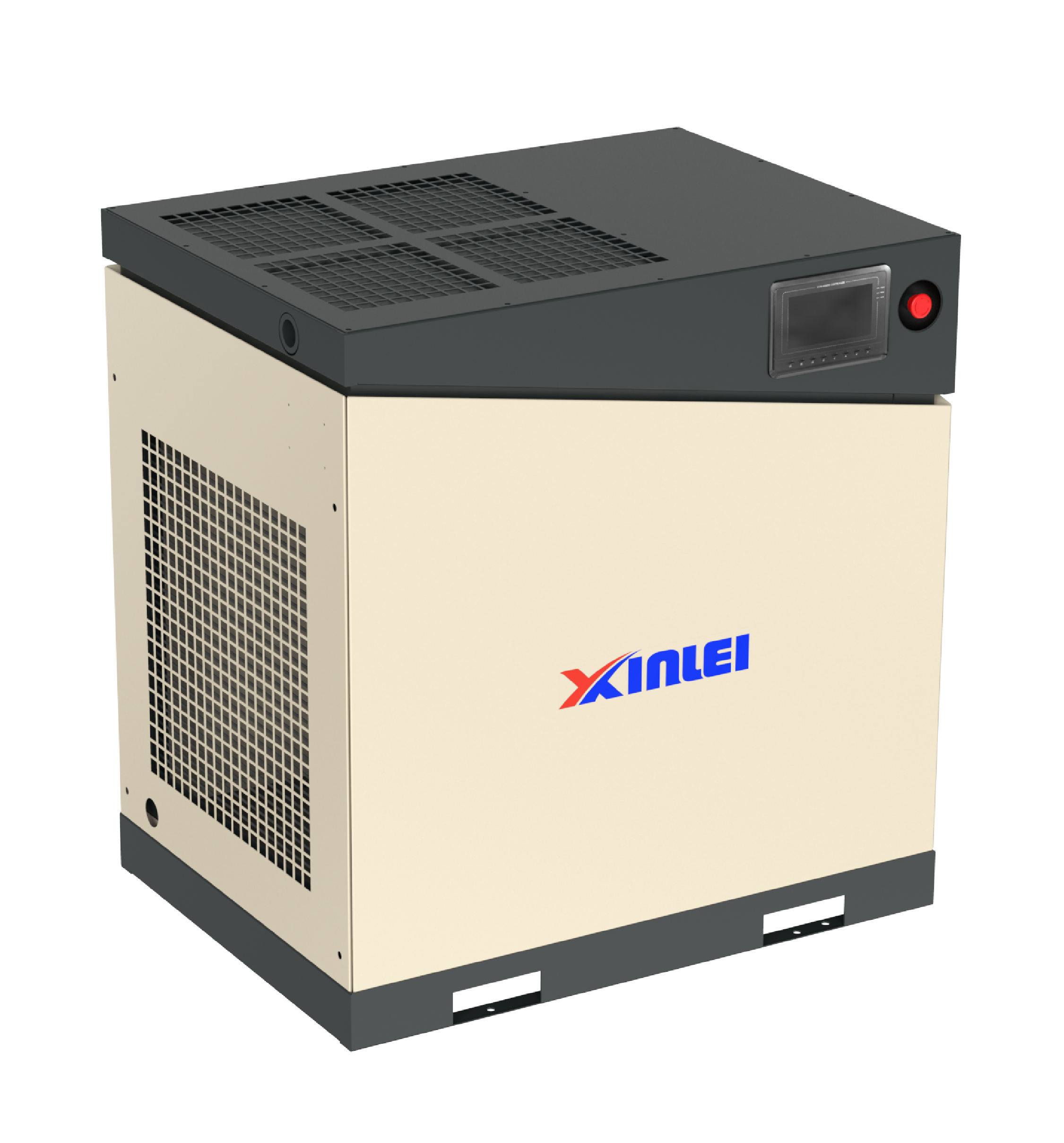

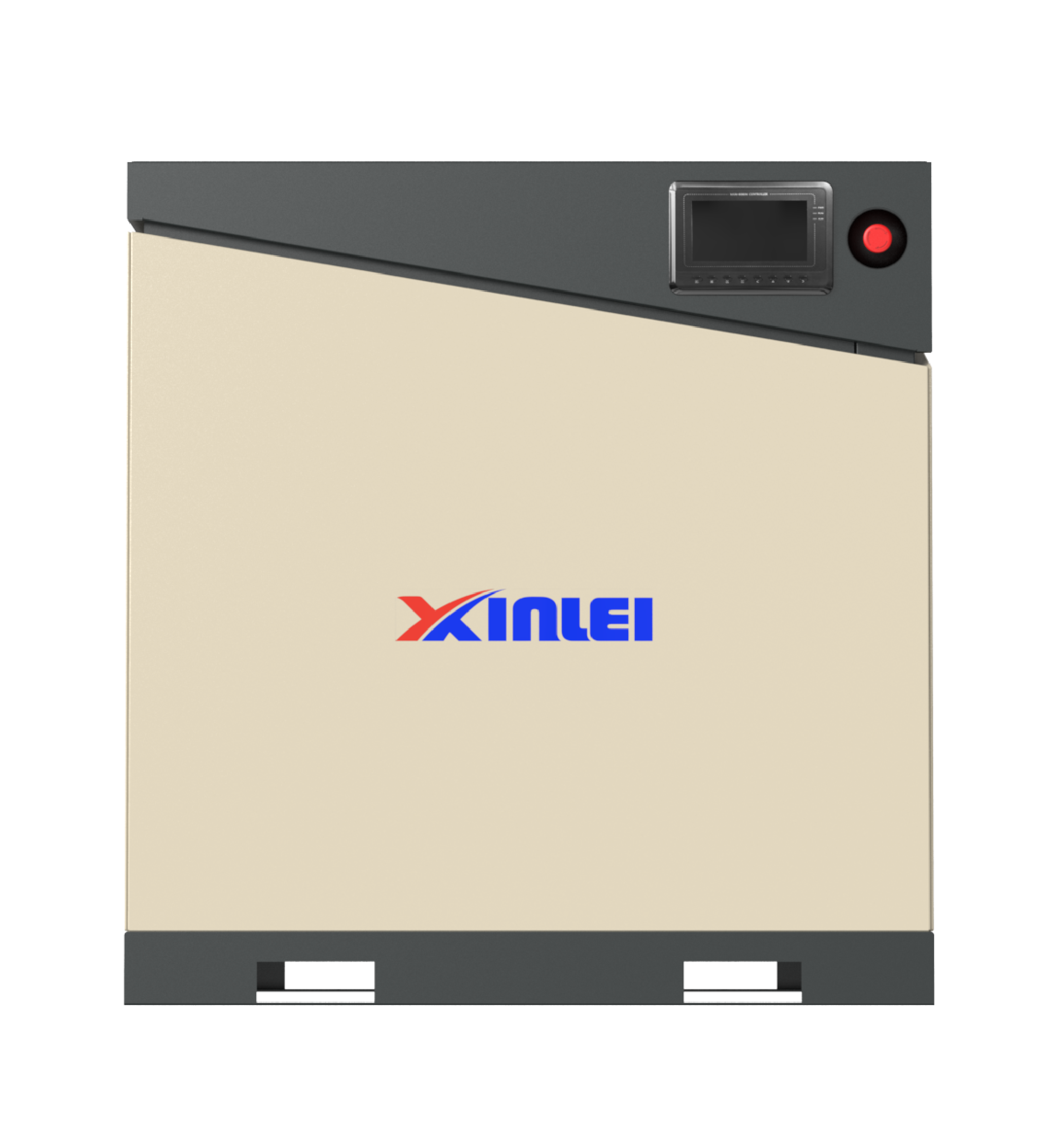

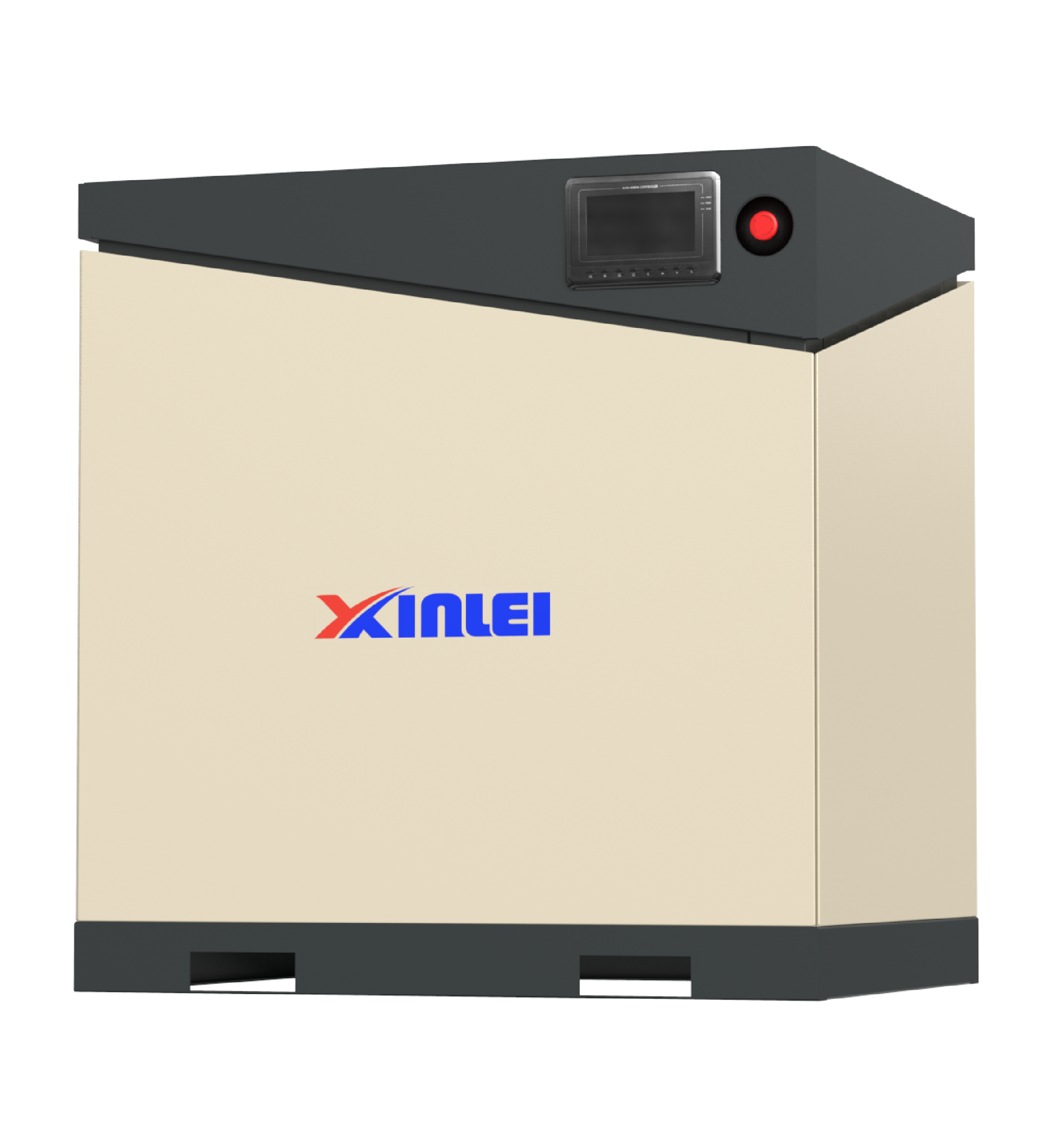

OEM Permanent magnet series Single Stage

The permanent magnet series uses high-efficiency air end with small leakage, low noise. It is equipped with IP55 air cooled motor as standard, with high protection level, no bearing mechanical loss, no cooling fan loss, low motor operating temperature, and motor efficiency is 5%-10% higher than that of asynchronous motors of the same capacity. The main motor adopts a coaxial integrated design, eliminating the center bracket, coupling, gear and other components, and the transmission efficiency is 100%.

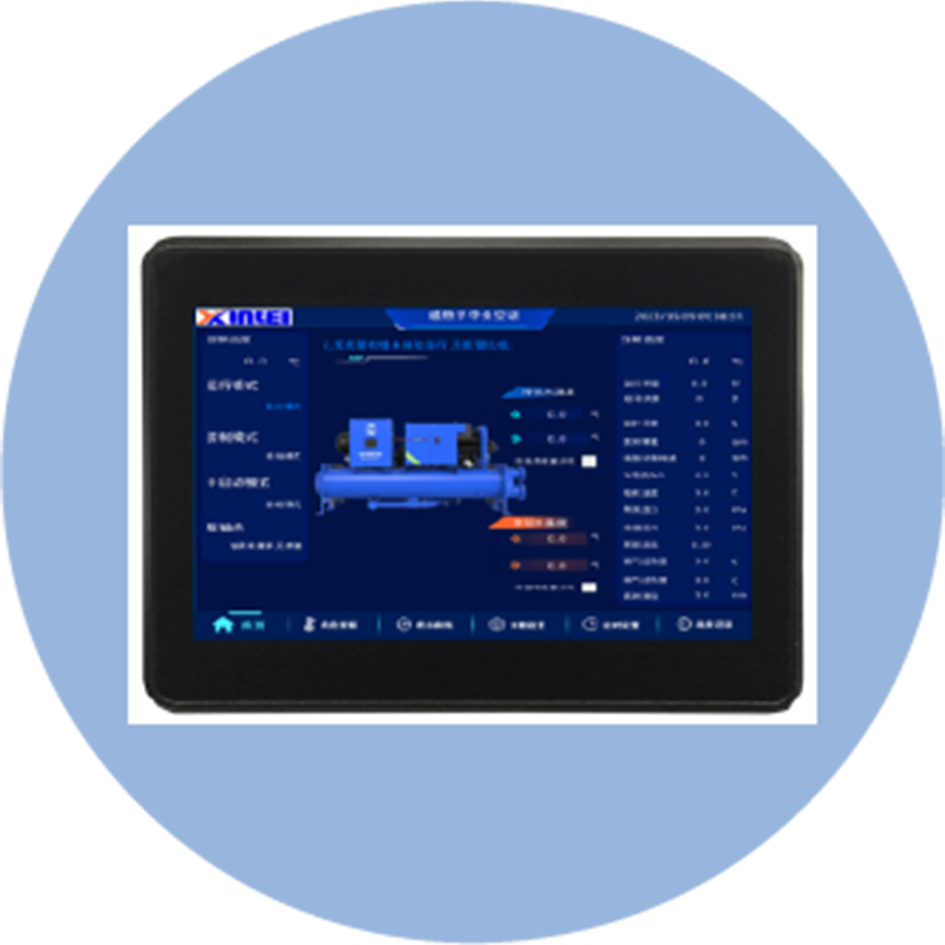

It is equipped with an intelligent control system as standard to detect various operating data of the equipment in real time.

Power:5.5-132 kwPressure:7/8/10 bar

Get Product Quotation

Download Product Information

Features Core Technology Machine structure IOT Technology

Features

Real better than Grade 1 energy efficiency

National energy efficiency laboratory, the actual measurement and actual labeling

Coaxial integrated direct connection technology

No intermediate transition such as center bracket, coupling, pulley, gear and other linkage components. Transmission zero loss. Transmission efficiency 100%

Smart IOT

Optional: IOT remote control, standard with air energy operation and maintenance platform

Air-cooled high-efficiency permanent magnet motor

Maintain ideal temperature, low noise working environment, higher protection level
The efficiency is 3%-10% higher than the same capacity asynchronous motor

Core Technology

Coaxial all-in-one design

The host and motor share a shaft design, without intermediate transition parts, such as a centre bracket, coupling, pulley, gear, etc.Transmission loss is reduced to zero, and transmission efficiency is 100%

High-efficiency screw host

The host adopts a new generation of the asymmetrical profile, 5:6 spiral rotor, from line seal to seal technology upgrade, improving gas production efficiency and large rotor diameter.Low speed ensures that the host noise is small and long life.

High-efficiency permanent magnet synchronous motor

No rotor slip, no electrical excitation, no fundamental iron and copper losses in the rotor and less heat generation, reducing stator current and stator resistance losses-IP55 protection grade ensure safe and reliable equipment operation. The motor has a 3-10% higher efficiency compared to asynchronous motor of the same capacity.High motor efficiency is maintained especially at low speeds.

Machine structure

High efficiency filtration system

- Efficient oil and gas separator so that exhaust oil content is less than 3ppm;

- High-efficiency oil filter, filter out impurities in lubricating oil, provide clean lubricating oil for the rotor and bearing of the head;

- High-efficiency air filter, filter the dust impurities in the inhaled air so that the rotor, bearing, etc.free from damage.

High-efficiency air-cooled permanent magnet motor

-IP55 air-cooled motor, high protection grade, no bearing mechanical loss, no cooling fan loss, low noise and low vibration.The efficiency is 3%-10% higher than the same capacity asynchronous motor.

-The host and motor share a shaft design, without intermediate transition parts, such as a centre bracket, coupling, pulley, gear, etc.

Transmission loss is reduced to zero, and transmission efficiency is 100%

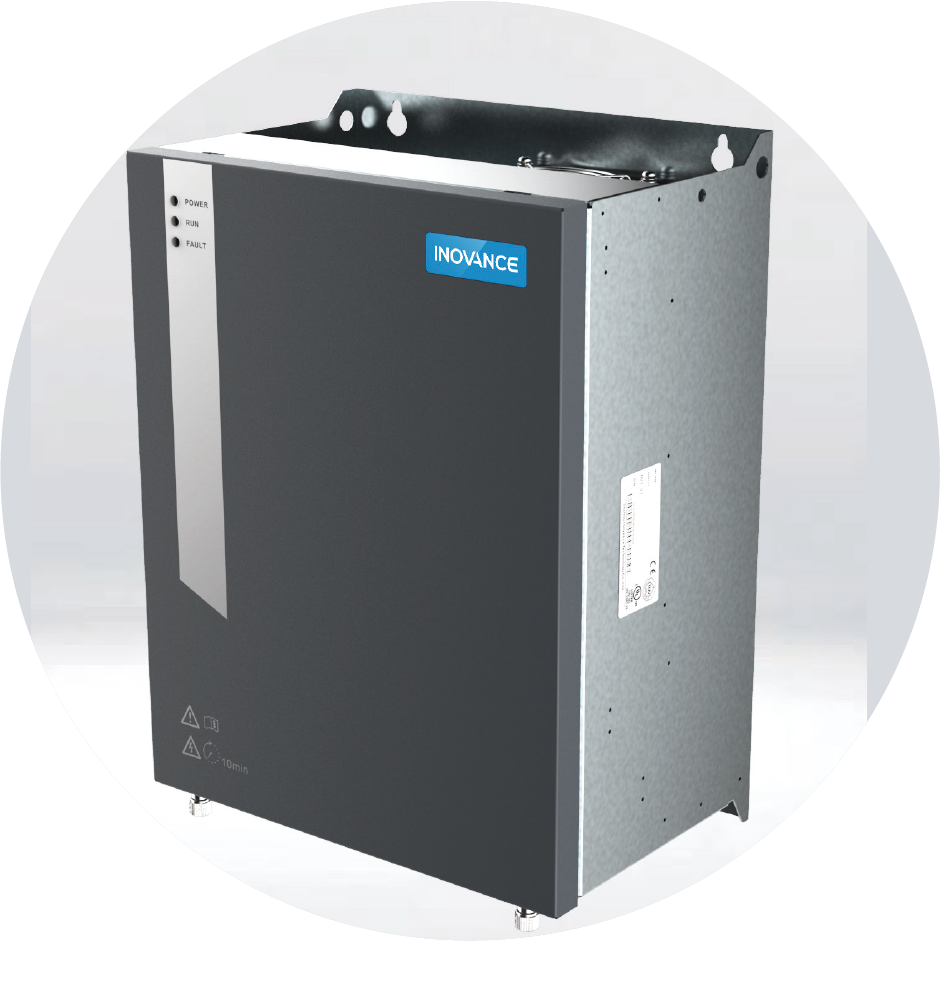

INOVANCE inverter

- High product integration with built-in 220 VAC AC power supply and power frequency contactor, integrated PT100 and other PTC detection circuits and protection circuits;

- It can realize one-click startup and use special aircraft software to communicate with H, the Internet of Things and other devices

No debugging is required.

Optional IOT technology

- Digital intelligence of equipment: through IOT technology,real-time monitoring of equipment data, fault active reminder, help manufacturers from the production of "dumb" equipment to smart equipment upgrade;

- Digital intelligence of service: Based on IOT technology, remote inspection and equipment diagnosis can be realised to repair and upgrade the service closed loop.

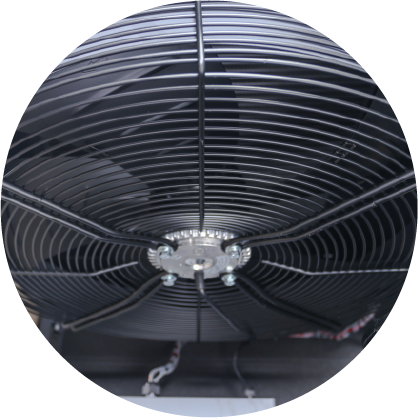

High-performance cooling system

- High heat dissipation efficiency, ensuring high tempe- rature and humidity 24-hour continuous operation in the environment.

-Fan start work when oil temperature reach 88℃

-Fan stop work when oil temperature low to 80℃

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the compressor bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
