Technology Innovation

Innovation is about going into a "no man's land" where there are endless possibilities. What we are doing is to find more possibilities for aerodynamics with our innovative genes passed down from generation to generation.

Inquire Now

Core Competitive Engine for
Continuous Growth

R&D Team

120
+
patent

300
+
Leading Customization Standards

10
+
New Product Development Cycle

6 Months
+

Core Technology

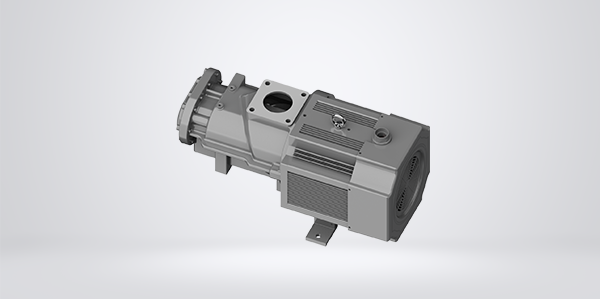

Integrated direct connection

100%

The air-end and motor coaxial integrated design, motor without bearings, no loss of transmission process, transmission efficiency of up to 100%.

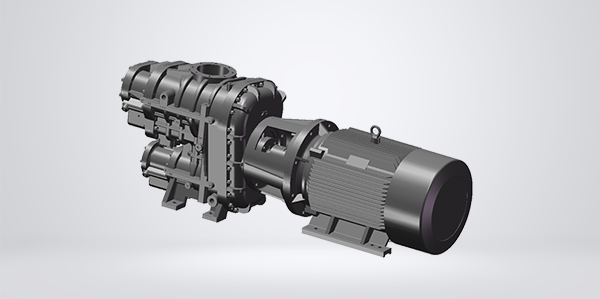

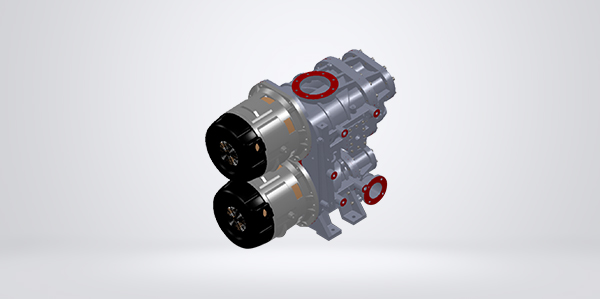

Two-stage compressor air-end and motor

Horizontal structural layout, low center of gravity, low vibration, infinitely variable speed, low operating noise

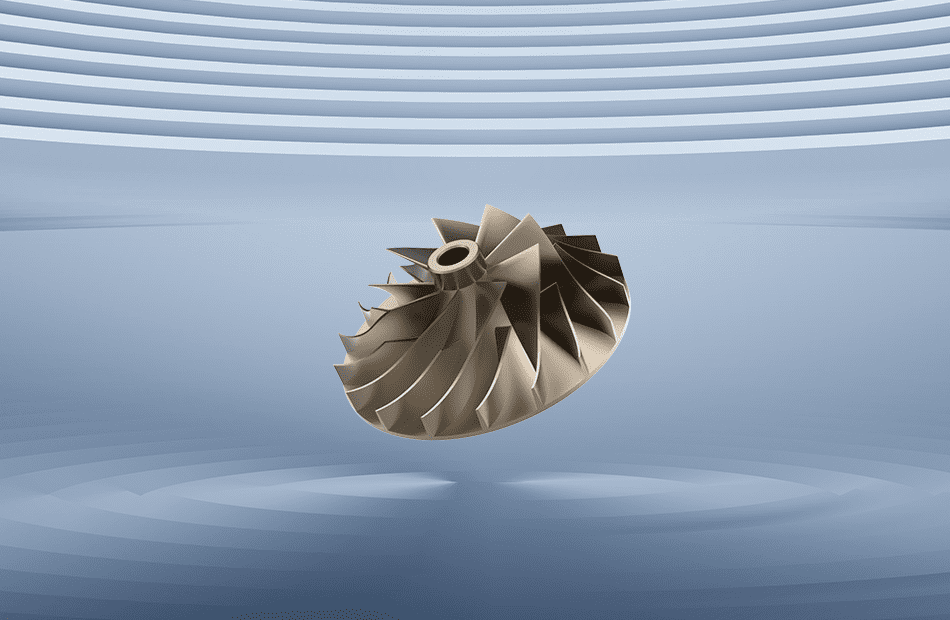

Ternary flow impeller

87%

Impeller pneumatic efficiency up to 87%, flow rate adjustment range up to 45%-100%, energy-saving effect, wide range of air volume adjustment

5/1000 mm

Aviation aluminum precision manufacturing, strong corrosion resistance, through the 5-axis machining center precision manufacturing, the tolerance is kept below 5/1000 mm.

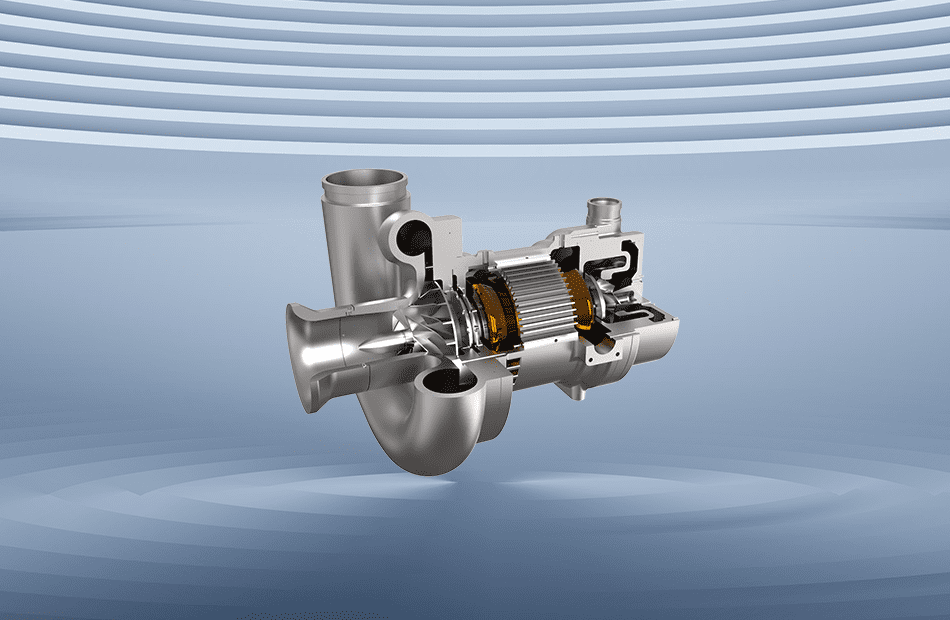

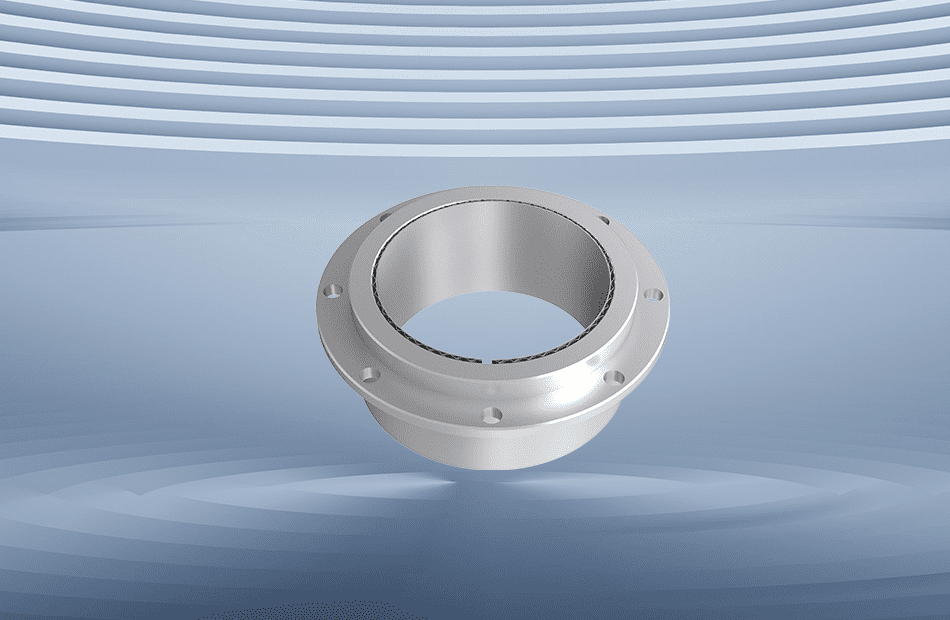

Air Suspension Bearing

20,000 Times

Simple structure, no need for auxiliary devices such as lubricant supply, start/stop durability guaranteed, passes ON/0FF test 20,000 times.

High speed

Utilizing high speed centrifugal force to levitate itself, no vibration of the bearing, no need for maintenance and repair.

Magnetic Levitation Bearing

10 Sensors

Sensor signal processing frequency of 10,000 times per second, precise control of the rotor axis position.

The

No contact, no wear and no lubrication, high load capacity up to 10kN radial and 20kN thrust.

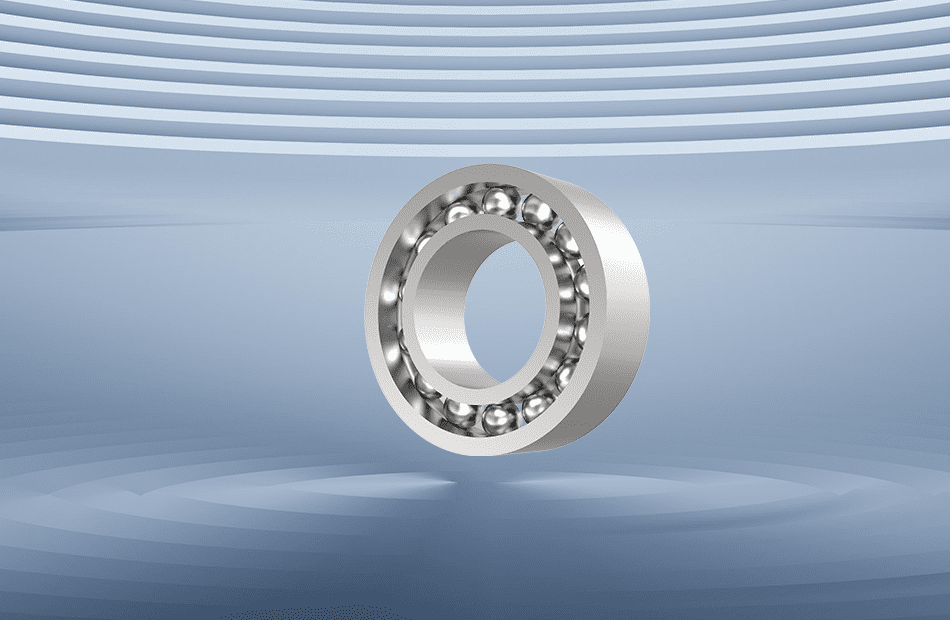

Ceramic ball bearings

High speed ceramic balls

Higher speed, longer life, stable and silent operation under high temperature and high speed conditions.

Completely oil-free

High-temperature sealing material, no grease leakage, realize the whole machine completely oil-free. Also special contact angle design, realize the large axial force stable operation.

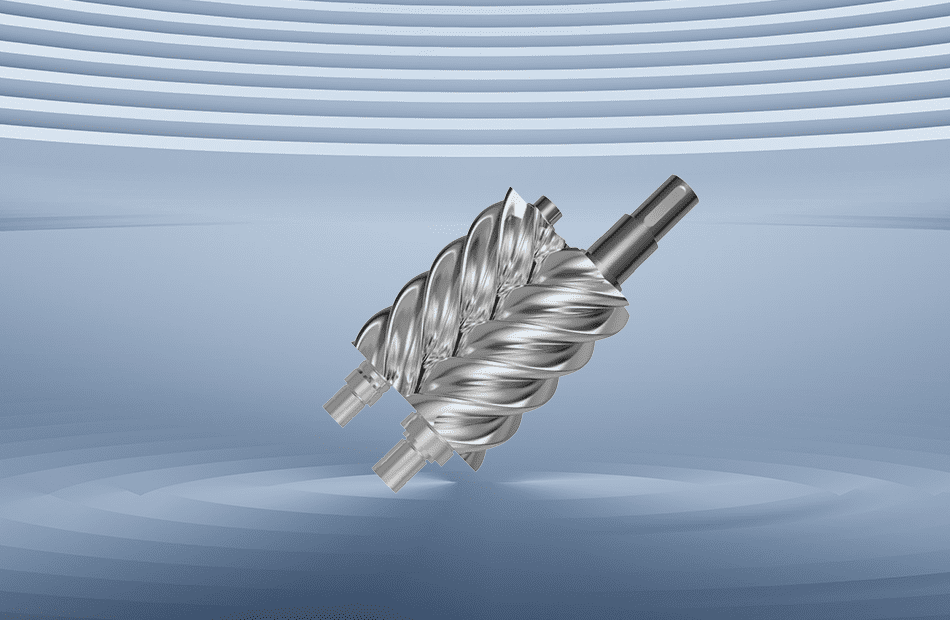

Self-developed V series energy-saving line

Small leakage area

Reduced leakage triangle area on the exhaust side and shortened contact line length, resulting in less air leakage.

High volumetric efficiency

Adoption of high-efficiency curve combination and optimization of the curve profile of the male and female rotors make the force on the rotor more balanced during operation, improve the volumetric efficiency, and enhance the performance of the air-end.

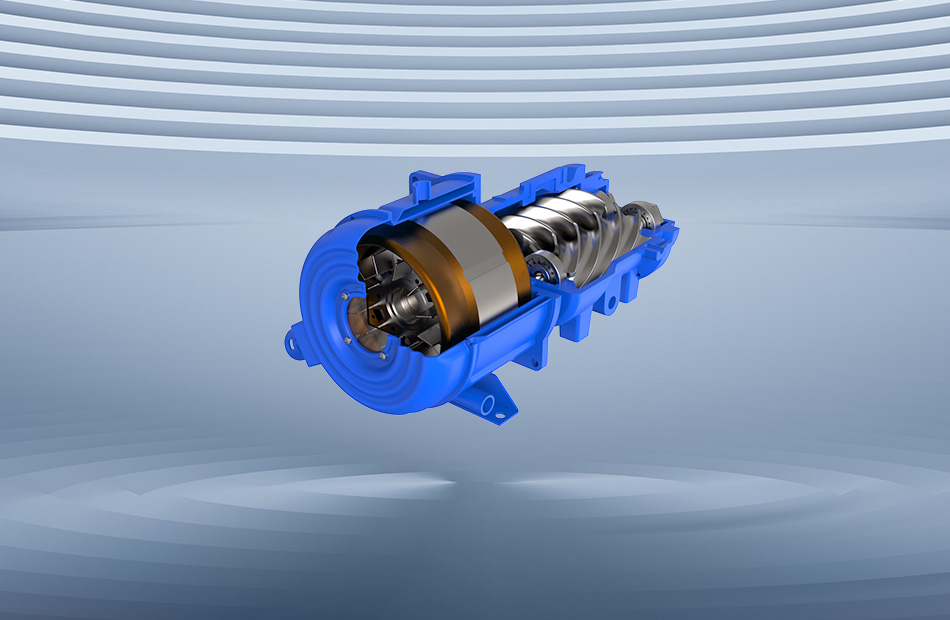

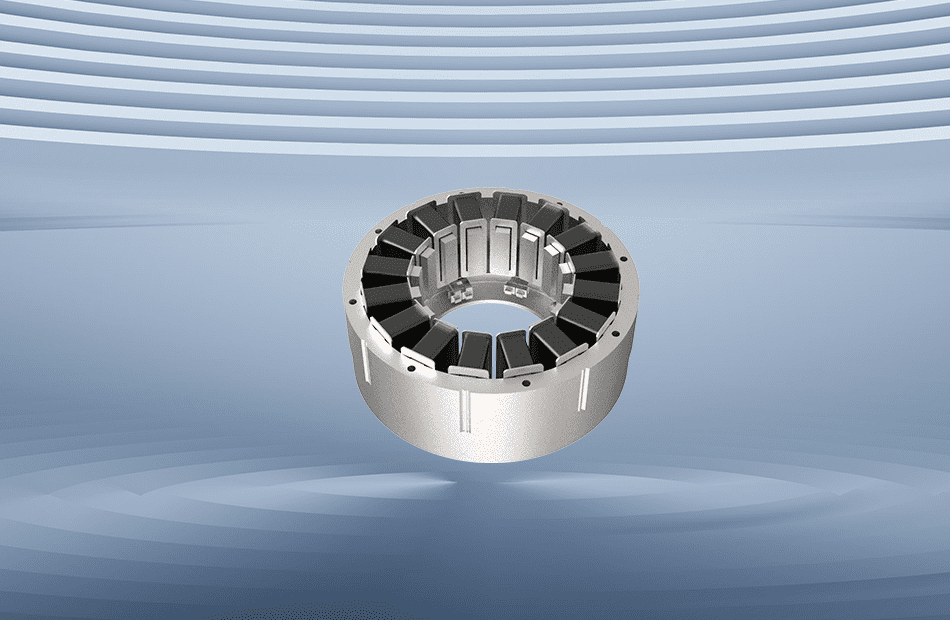

High-speed permanent magnet synchronous motor

96%

The motor operates with an optimized design for high-speed rotation and can reach an efficiency of 96%, with a high level of energy efficiency and continuous and stable heat dissipation.

1-100000

Aero-power engineering technology, speed up to 1-100,000+ rpm

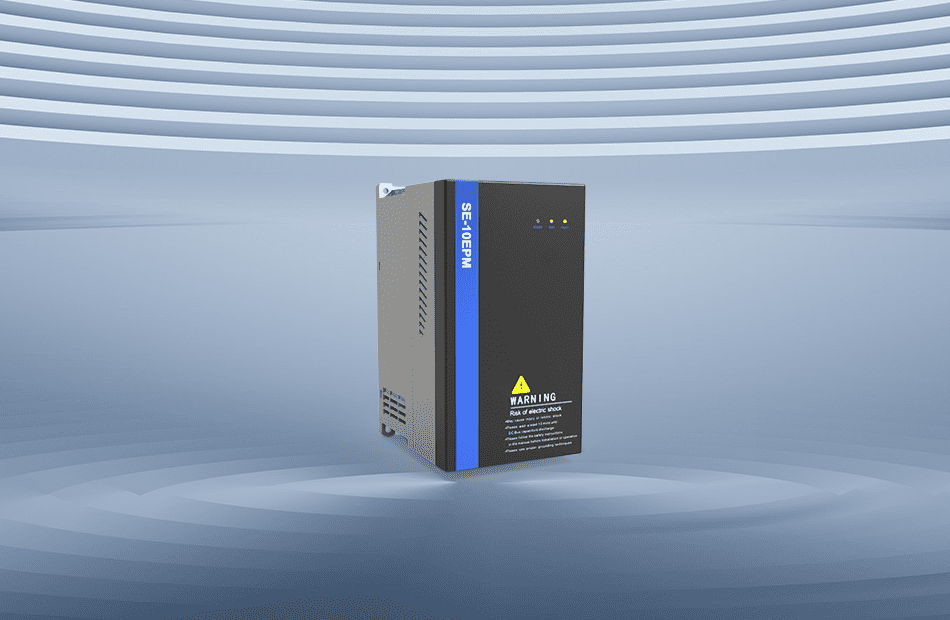

Dual inverter control

Infinitely variable speed control

Air volume adjustment range 45-100% to meet customer's demand for different pressure and volume flow rate.

Energy saving algorithm

Provides a minimized algorithm for high-speed rotation and achieves energy-saving high-speed rotation by adjusting the frequency (HZ). Also equipped with internal backup capacitors to quickly and safely decelerate and stop the machine in the event of a power failure.

01 / 04

Core Technology Milestones

Xinlei continuously optimizes and upgrades its product structure through in-depth analysis of energy-saving needs

2018-Present
2015-2017
2014
2013
2011-2012

2018-Present

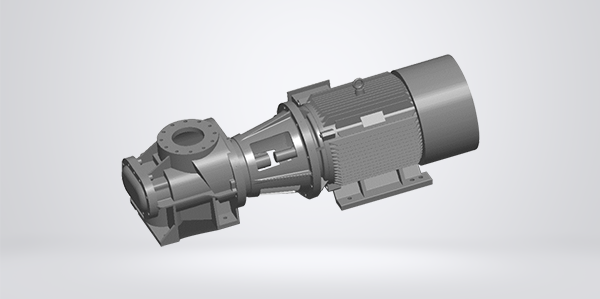

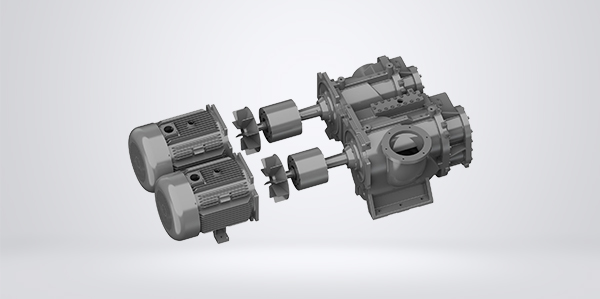

Upgrade of the third generation two-stage compression screw air-end and motor

(Adopting horizontal dual-motor structure: it has all the advantages of vertical dual-motor, and compared with vertical twin-motor, horizontal dual-motor air-end has lower center of gravity and less vibration, so it operates more smoothly and reliably)

2015-2017

Upgrade of the second generation two-stage compression screw air-end and motor

(Vertical dual-motor structure: coaxial one-piece structure with 100% transmission efficiency, one and two rotational speeds can be independently controlled to match the optimal rotational speed and give full play to the best performance of the air-end and motor)

2014

The first generation of two-stage compression screw air-end and motor on the market

(Vertical gear structure: lower pressure ratio per stage, reduce internal and external leakage, improve volumetric and adiabatic efficiency as well as energy efficiency of compressor)
