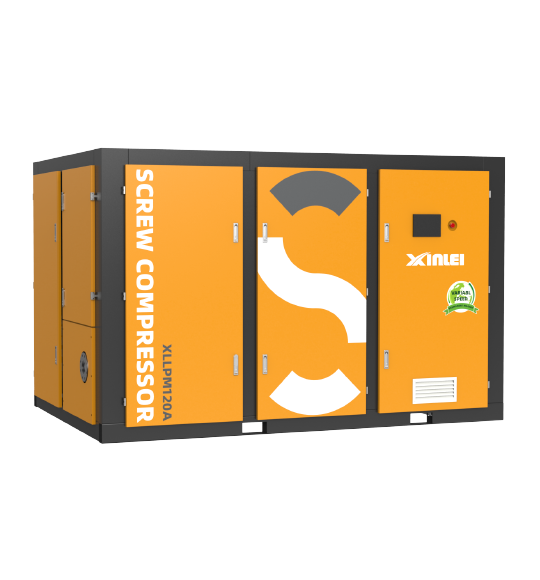

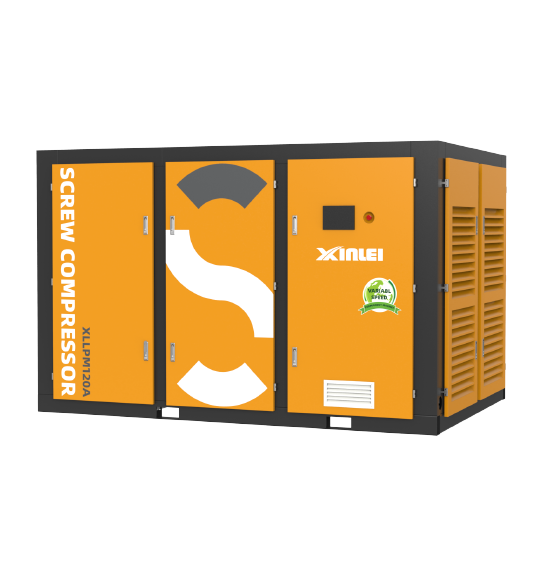

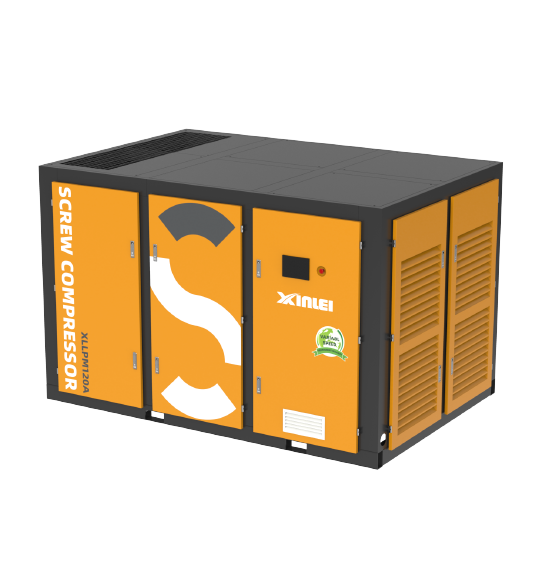

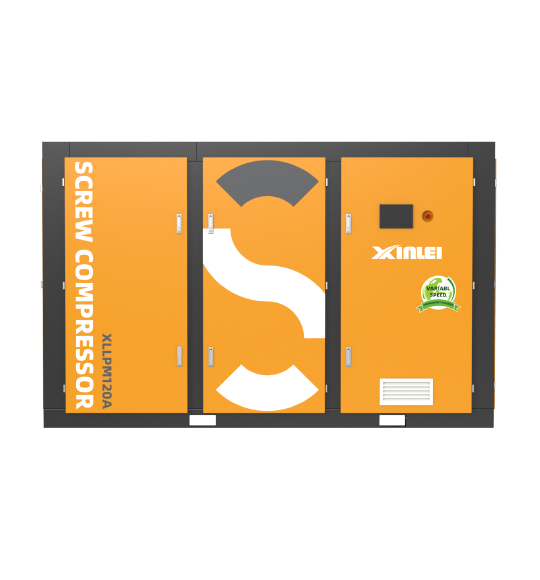

JF series Air-Cooled Two-Stage Screw Air Compressor (low pressure)-JF Two-stage series screw air compressor (normal pressure)-Xin Lei

Features Core Technology Machine structure IOT Technology Product Recommendation

Features

Low-Pressure Single-Stage

Simple structure with a single compression process, reducing energy loss;
Low working pressure with large air output, directly providing suitable pressure and lowering operating costs.

Air-Cooled High-Efficiency Permanent Magnet Motor

No fundamental iron or copper losses in the rotor, and less heat generation, reducing stator current and resistance losses. Efficiency is 5%-8% higher than asynchronous motors of the same capacity.

Smart IOT

Remote control via IoT, standard equipped with an air energy maintenance platform.

Core Technology

High-Efficiency Permanent Magnet Synchronous Motor

The rotor has no slip and requires no excitation current. It has no fundamental iron or copper losses in the rotor and generates less heat, reducing stator current and resistance losses. Its efficiency is 5%-8% higher than asynchronous motors of the same capacity, especially maintaining high motor efficiency at low speeds.

Stepless Speed Regulation of Synchronous Motor

Achieves stepless synchronous speed regulation to meet different requirements, with a motor efficiency of 95.5%. Saves 4.1% energy, offers high torque, and runs smoothly;

Energy-Efficient Line

Through in-depth analysis of energy-saving needs and continuous optimization of product structure, Xinlei's technical team has been upgrading the V series line with years of technical expertise. This line is one of the most energy-efficient screw compressor lines, featuring high volumetric efficiency, reasonable drive contact points, and a small area of the discharge side leakage triangle.

Machine structure

High-Efficiency Filtration System

High-efficiency oil-gas separator ensures oil content in discharge air is below 3 ppm.

High-precision oil filter guarantees optimal oil supply to the airend, providing better protection and extending its service life.

High-efficiency vertical air filter keeps the internal system clean, protecting the airend rotors and bearings from wear, and prolonging the life of the lubricating oil.

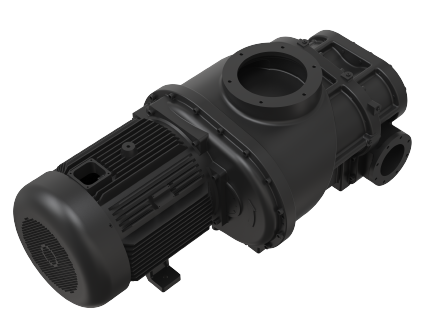

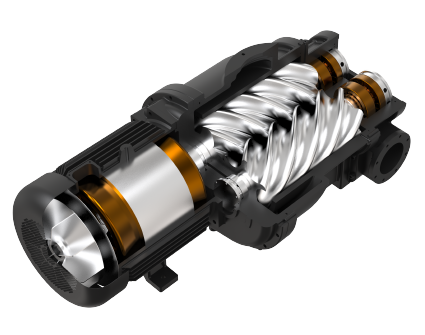

High-Efficiency Air-Cooled Main Unit

Achieves stepless synchronous speed regulation to meet various demands, with a motor efficiency of 95.5%. Saves 4.1% energy, provides high torque, and operates smoothly;

Large rotor, low speed, high efficiency, low noise, low vibration, and low energy consumption;

Integrated main unit and motor structure eliminates transmission loss, achieving 100% transmission efficiency.

Independent Oil Pump Supply Design

High-quality independent oil pump with forced lubrication design;

Uses an independent oil pump for forced lubrication to ensure sufficient oil injection and better oil-gas mixing ratio even at extremely low discharge pressures (2 kg).

Touchscreen Display

Real-time, intuitive display on-site, mobile, and computer, allowing users, service providers, and manufacturers to simultaneously monitor operating status, performance data, fault warnings, and more.

Online real-time monitoring of pressure, power, and temperature fluctuations.

Optional integration with XinZhiKong IoT platform.

Cooling System

Equipped with plate-fin air-cooled heat exchangers or shell-and-tube water-cooled heat exchangers to meet different customer operating conditions;

Heat exchangers are designed and manufactured with over 30% increased heat exchange area;

Provides excellent cooling performance even at ambient temperatures of 45℃, preventing high-temperature shutdowns and extending lubricant life by 20%.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
