Features

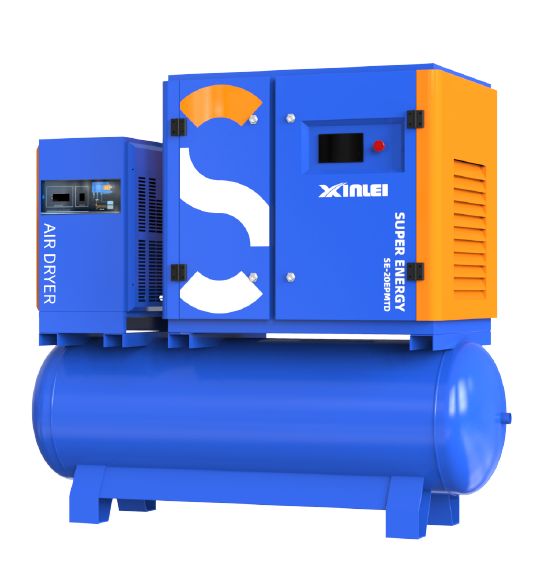

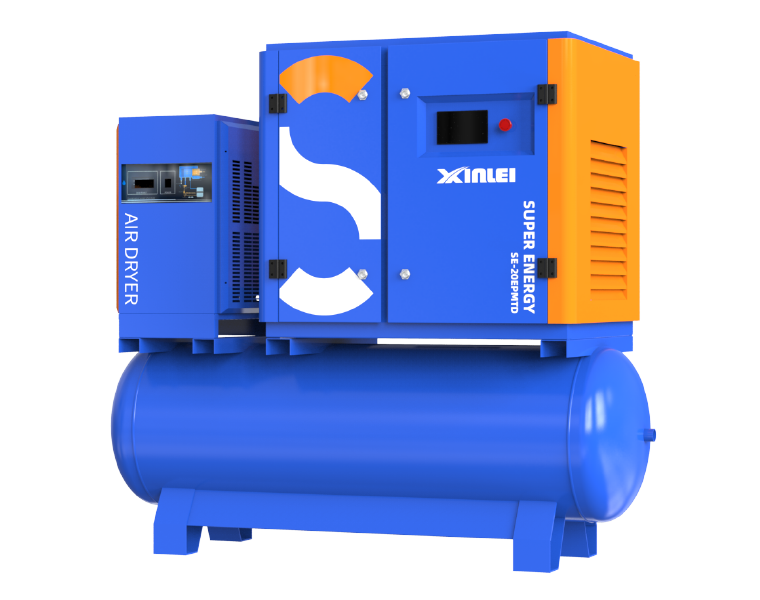

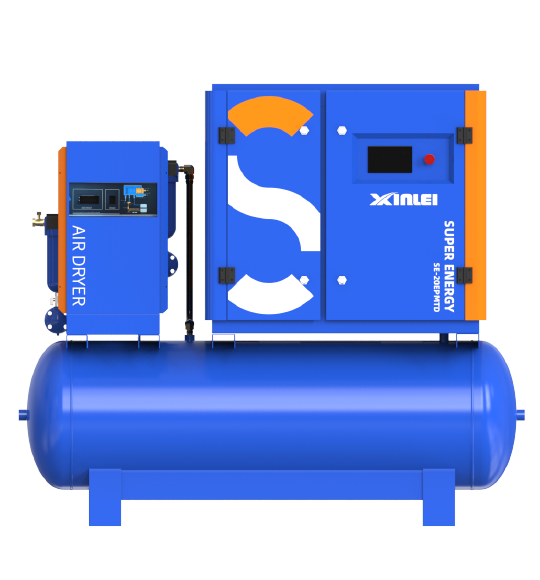

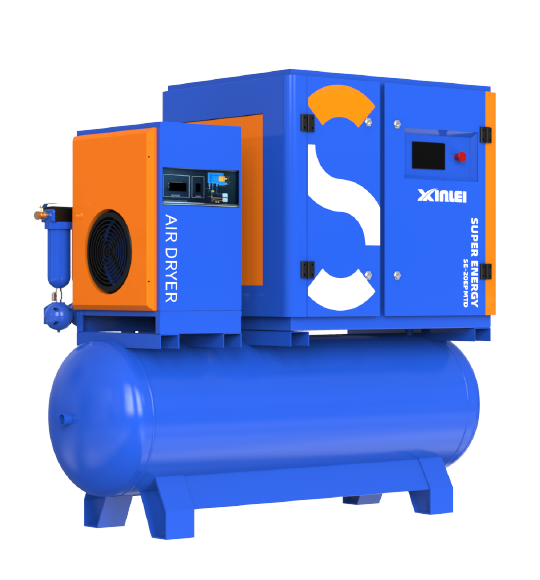

Integrated All-in-One Design

Combines air compressor, refrigerated dryer, air receiver tank, and high-efficiency filters into a single unit.
No need for additional piping — truly plug-and-play.

Oil-Free Clean Air

Equipped with a high-efficiency refrigerated dryer and a 4-stage high-precision filtration system (15 bar), ensuring the delivery of pure, clean compressed air.

Smart IOT

Equipped with IoT remote control functionality and a standard air energy operation and maintenance platform.

Oil-Cooled High-Efficiency Permanent Magnet Motor

Maintains optimal operating temperature, provides a low-noise working environment, and offers a higher protection rating.

Core Technology

Coaxial Integrated Design

This design reduces transmission loss to zero and achieves 100% transmission efficiency.(Patent No. 2014103573965)

High-Efficiency Permanent Magnet Synchronous Motor

Its efficiency is 3%–10% higher than asynchronous motors of the same capacity.

Especially at low speeds, it maintains high motor efficiency.

Energy-Saving Rotor Profile

This rotor profile is recognized as one of the most energy-efficient screw rotor designs in the industry, featuring high volumetric efficiency, optimized drive contact points, and a minimized leakage triangle on the discharge side.

Machine structure

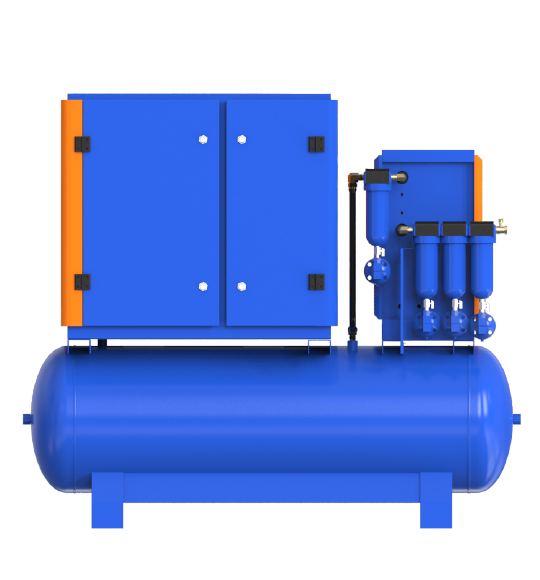

High-Efficiency Filtration System

High-efficiency oil-gas separator ensures oil content in discharge air is below 3 ppm.

High-precision oil filter guarantees optimal oil supply to the airend, providing better protection and extending its service life.

High-efficiency vertical air filter keeps the internal system clean, protecting the airend rotors and bearings from wear, and prolonging the life of the lubricating oil.

High-efficiency oil-cooled permanent magnet motor

The IP65-rated oil-cooled motor features high protection, no mechanical bearing losses, and no cooling fan losses, resulting in low noise and vibration.

Its efficiency is 3%–10% higher than asynchronous motors of the same capacity.

The motor and airend share a common shaft design, eliminating the need for intermediate components such as central support brackets, couplings, pulleys, or gears. This reduces transmission loss to zero and achieves 100% transmission efficiency.

(Patent No. 2014103573965)

High-Efficiency Variable Frequency Drive

The product features a high level of integration, with a built-in 220 VAC power supply and industrial-frequency contactor, as well as integrated PT100 and PTC detection and protection circuits.

It supports one-touch startup using dedicated software and can communicate with HMI and IoT devices without requiring additional debugging.

Intelligent Operation Panel

Equipment Digitization: Real-time monitoring of equipment data and proactive fault alerts through IIoT technology, assisting manufacturers in upgrading from “silent” production equipment to intelligent systems.

Service Digitization: Based on IIoT technology, enables remote inspection, diagnosis, and repair/upgrade services, creating a closed-loop smart service system.

High-Performance Cooling System

High cooling efficiency ensures 24-hour continuous operation even under high temperature and high humidity conditions.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
