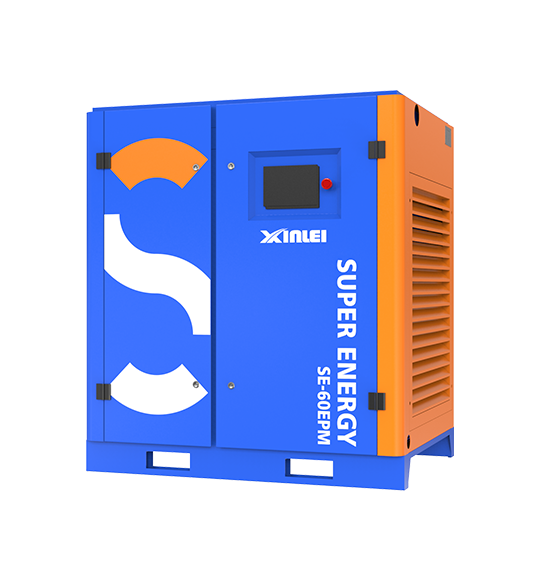

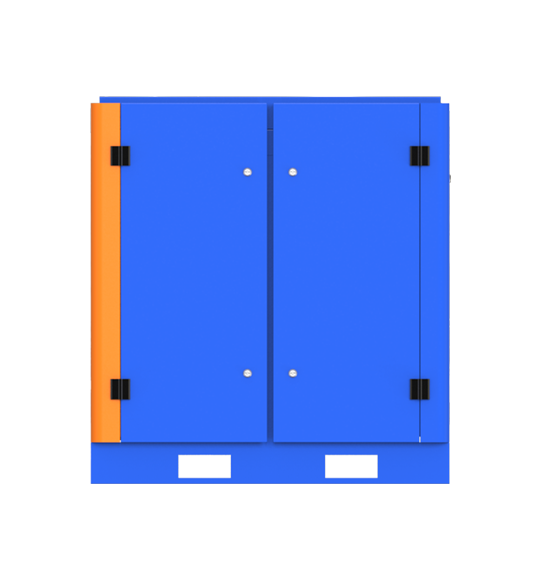

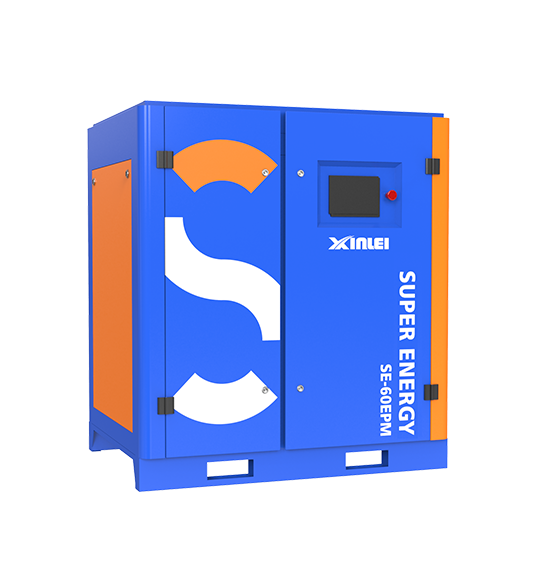

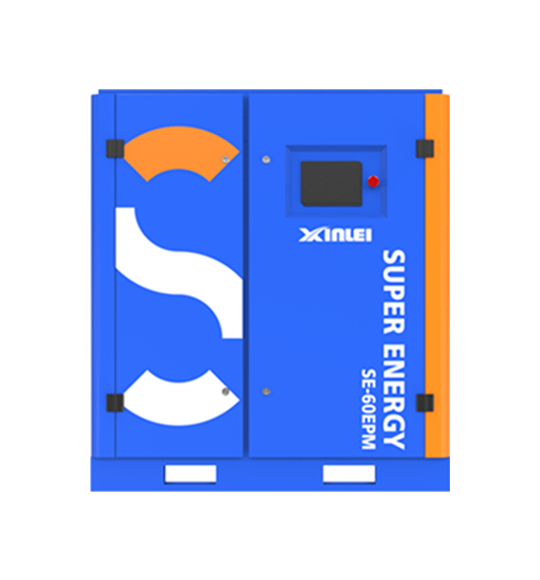

SE series Single Stage

The Super Energy series uses a new generation of high-efficiency screw main engine with small leakage, high efficiency and low noise. It is equipped with IP65 oil-cooled motor as standard, with high protection level, no bearing mechanical loss, no cooling fan loss, low motor operating temperature, and motor efficiency is 5%-10% higher than that of asynchronous motors of the same capacity. The main motor adopts a coaxial integrated design, eliminating the center bracket, coupling, gear and other components, and the transmission efficiency is 100%.
It meets the national first-level energy efficiency standard. It is equipped with an intelligent control system as standard to detect various operating data of the equipment in real time.

Power:7.5-75 kwPressure:7/8/10 bar

Get Product Quotation

Download Product Information

Features Core Technology Machine structure IOT Technology Product Recommendation

Features

Real better than Grade 1 energy efficiency

National energy efficiency laboratory, the actual measurement and actual labeling

Coaxial integrated direct connection technology

No intermediate transition such as center bracket, coupling, pulley, gear and other linkage components. Transmission zero loss. Transmission efficiency 100%

Smart IOT

IOT remote control, standard with air energy operation and maintenance platform

Oil-cooled high-efficiency permanent magnet motor

Maintain ideal temperature, low noise working environment, higher protection level
The efficiency is 3%-10% higher than the same capacity asynchronous motor

Core Technology

Coaxial Integrated Design

This design reduces transmission loss to zero and achieves 100% transmission efficiency.

(Patent No. 2014103573965)

High-Efficiency Permanent Magnet Synchronous Motor

Its efficiency is 3%–10% higher than asynchronous motors of the same capacity.

Especially at low speeds, it maintains high motor efficiency.

Energy-Saving Rotor Profile

This rotor profile is recognized as one of the most energy-efficient screw rotor designs in the industry, featuring high volumetric efficiency, optimized drive contact points, and a minimized leakage triangle on the discharge side.

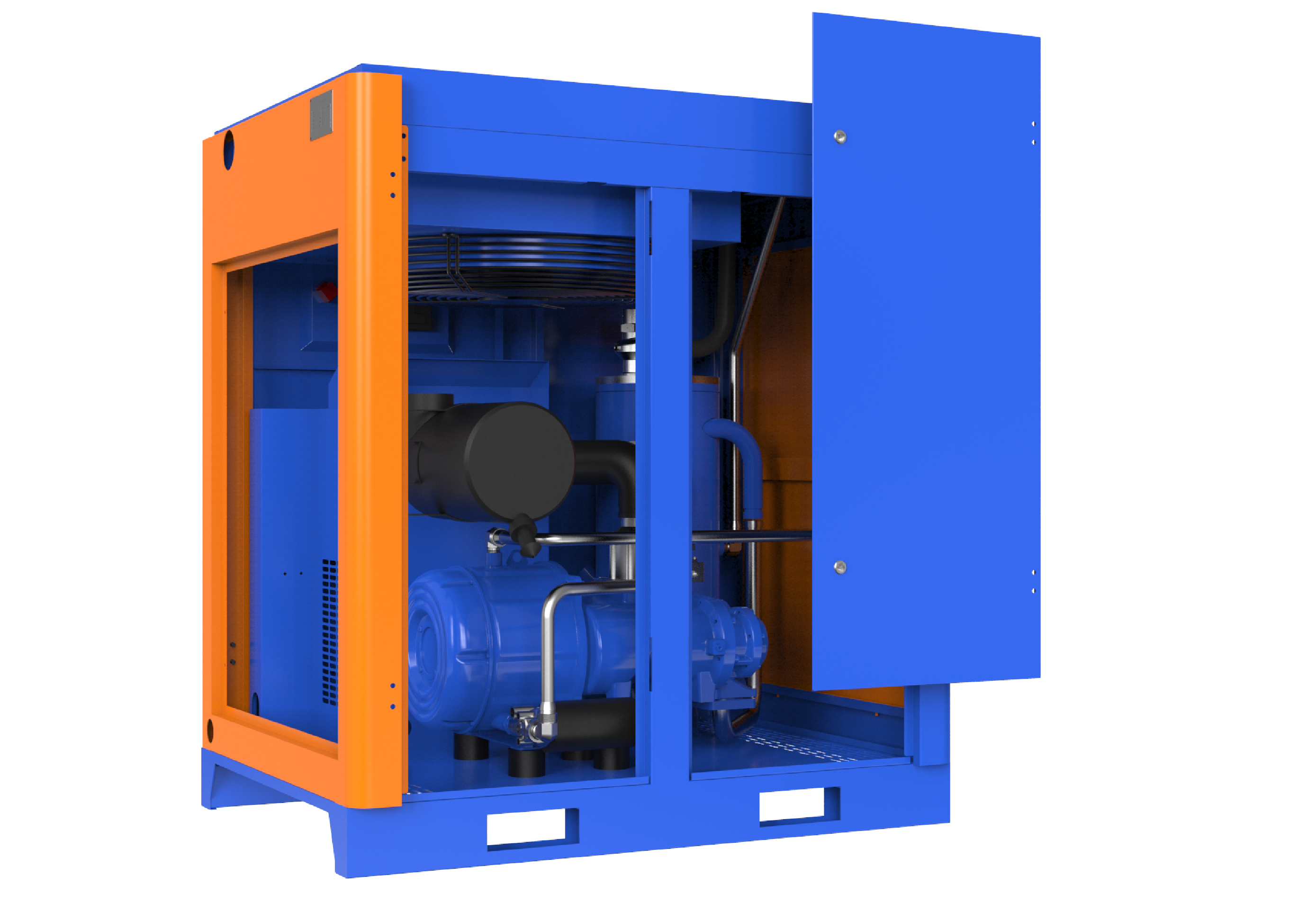

Machine structure

High efficiency filtration system

- Efficient oil and gas separator so that exhaust oil content is less than 3ppm;

- High-efficiency oil filter, filter out impurities in lubricating oil, provide clean lubricating oil for the rotor and bearing of the head;

- High-efficiency horizontal air filter, filter the dust impurities in the inhaled air so that the rotor, bearing, etc.free from damage.

High-efficiency oil-cooled permanent magnet motor

-IP65 oil-cooled motor, high protection grade, no bearing mechanical loss, no cooling fan loss, low noise and low vibration.The efficiency is 3%-10% higher than the same capacity asynchronous motor.

-The host and motor share a shaft design, without intermediate transition parts, such as a centre bracket, coupling, pulley, gear, etc.

Transmission loss is reduced to zero, and transmission efficiency is 100%

INOVANCE inverter

- High product integration with built-in 220 VAC AC power supply and power frequency contactor, integrated PT100 and other PTC detection circuits and protection circuits;

- It can realize one-click startup and use special aircraft software to communicate with H, the Internet of Things and other devices

No debugging is required.

Standard IOT technology

- Digital intelligence of equipment: through IOT technology,real-time monitoring of equipment data, fault active reminder, help manufacturers from the production of "dumb" equipment to smart equipment upgrade;

- Digital intelligence of service: Based on IOT technology, remote inspection and equipment diagnosis can be realised to repair and upgrade the service closed loop.

High-performance cooling system

- High heat dissipation efficiency, ensuring high tempe- rature and humidity 24-hour continuous operation in the environment.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
