Features

Energy conservation and emission reduction

Adhering to the principle of energy conservation and emission reduction, the energy consumption index has been tested by authoritative institutions and meets the national first-class energy efficiency standard.

Oil free environmental protection

Adopts a new advanced oil-free design concept to avoid environmental pollution during the use of the air compressor.

Large and stable displacement

Good airtightness, high displacement, displacement will not show a cliff-like decrease with increasing pressure.

High protection level

The design of the entire machine and motor meets the national IP68 protection level, making it safer.

Lightweight Design

The total weight of the machine is 45KG, highly integrated, and easy to install.

Long life

Efficient and durable with 15,000 hours of use.

Core Technology

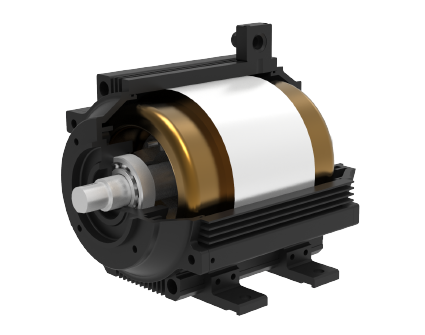

Motor

The Vehicle-mounted machine motor is rare earth permanent magnet synchronous, and the motor winding adopts distributed winding to reduce noise;

The rotor structure adopts a V-shaped magnetic steel groove structure, which increases the weak magnetic ability of the motor;

The permanent magnet adopts rare earth permanent magnet steel with high remanence and high coercivity, which improves the motor's overload resistance, demagnetization resistance, and high temperature resistance.

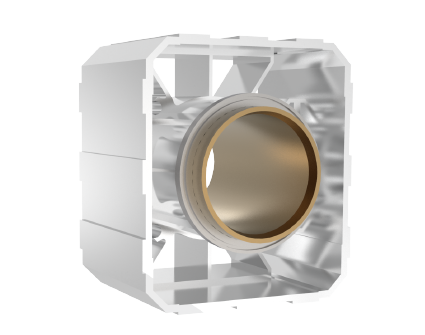

Cylinder

Cylinder is made of gravity casting silicon aluminum alloy, which is dimensionally stable and has good heat dissipation performance. The inner diameter is ceramicized, and the hardness reaches 1100HV, which has been proved to have a life span of more than 15,000h after the endurance test.

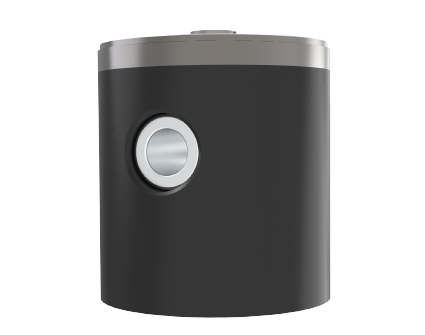

Piston

Adopting high-strength aviation aluminum alloy 7075 special forging heat treatment process, the surface is filled with polytetrafluoroethylene polymer composite wear-resistant layer, which can work normally at -55 ℃~280 ℃, adapt to environmental temperatures of -50~85 ℃, with low friction coefficient and super strong wear resistance and wear reduction performance. It can protect the smoothness of the piston body and cylinder inner wall, making them less susceptible to wear and tear, with a service life of over 20000 hours.

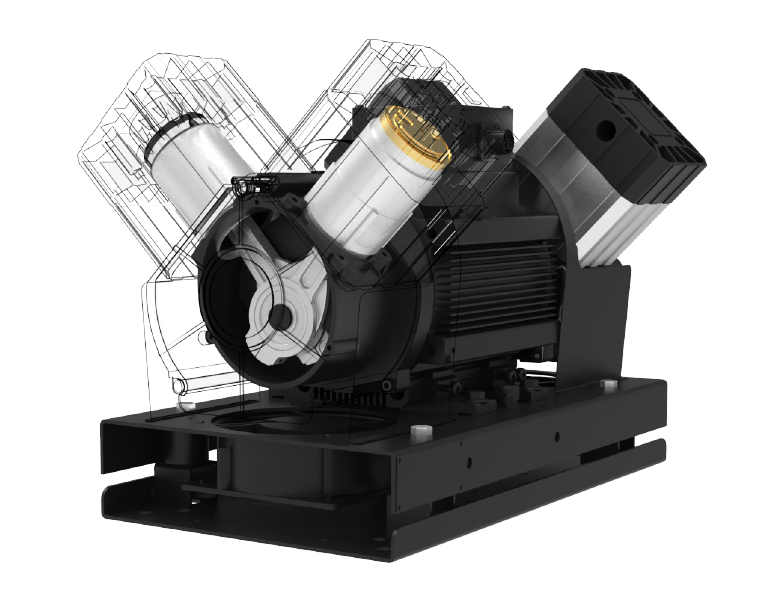

Machine structure

Cooling Cylinder Head

Advanced heat conduction nail design increases heat dissipation area, prevents machine heat accumulation, scientifically distributes internal heat conduction nails, delays airflow impact while reducing aerodynamic noise, and makes the machine quieter.

Cylinder

Cylinder is vitrified to resist stamping, corrosion and abrasion, providing users with more sufficient and long-lasting power.

Piston Sealing Ring

The piston sealing ring is made of imported formula material made of polytetrafluoroethylene, providing better guidance for piston movement. The piston has a low friction coefficient, strong wear resistance, high temperature resistance, corrosion resistance, long service life, and reduces maintenance costs.

Vibration Damping Device

- Digital intelligence of equipment: through IOT technology,real-time monitoring of equipment data, fault active reminder, help manufacturers from the production of "dumb" equipment to smart equipment upgrade;

- Digital intelligence of service: Based on IOT technology, remote inspection and equipment diagnosis can be realised to repair and upgrade the service closed loop.

The Air Release Device

Scientifically designed vibration damping device, the perfect combination of spring damping and rubber damping, on the one hand, to reduce the axial pressure vibration of the machine to avoid radial oscillation, on the other hand, to reduce the noise generated during the use of the machine, safe and low noise.
