Features

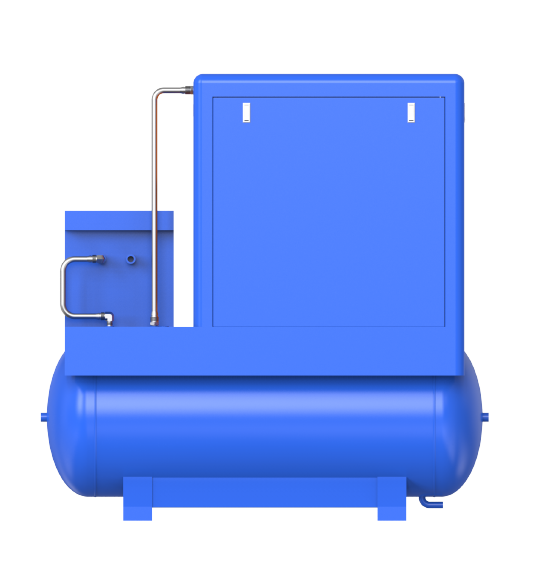

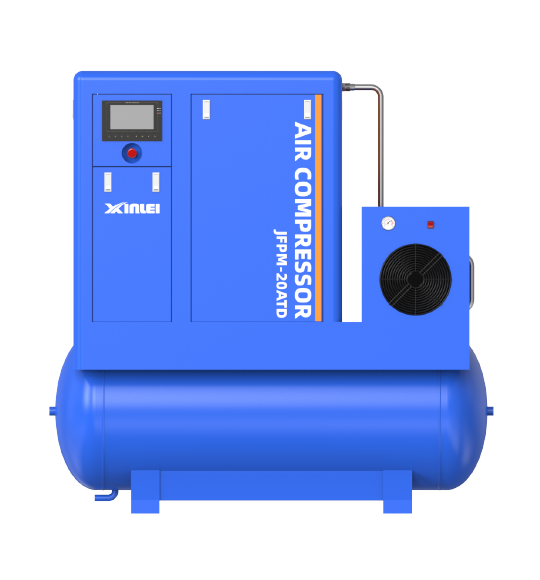

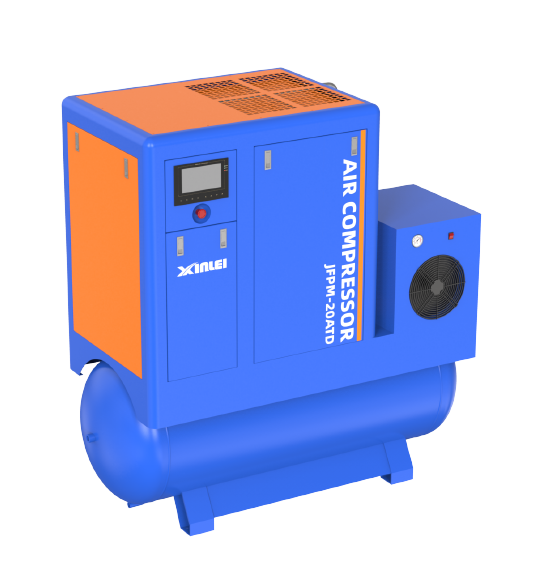

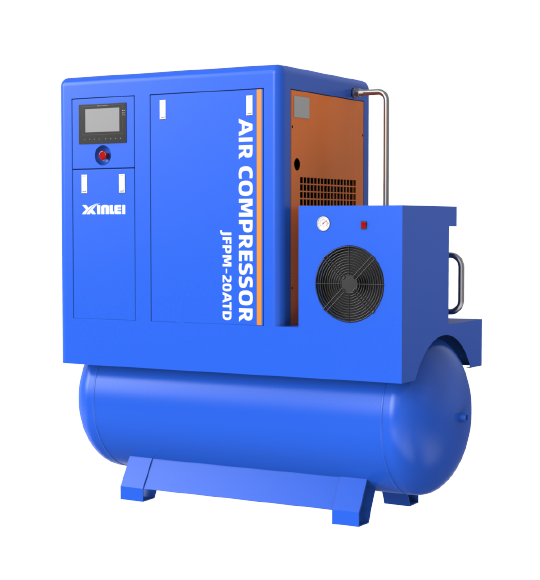

Integrated All-in-One Design

Combines air compressor, refrigerated dryer, air receiver tank, and high-efficiency filters into a single unit.
No need for additional piping — truly plug-and-play.

Oil-Free Clean Air

Equipped with a high-efficiency refrigerated dryer and a 4-stage high-precision filtration system (15 bar), ensuring the delivery of pure, clean compressed air.

Noise and Vibration Reduction Design

Incorporates vibration-damping design and flexible piping connections to effectively reduce vibration and noise, ensuring operating noise levels below 80 dB(A).

Air-Cooled High-Efficiency Permanent Magnet Motor

Its efficiency is 5%–8% higher than that of asynchronous motors with the same capacity.

Core Technology

High-Efficiency Air-Cooled Permanent Magnet Motor

With IP55 protection rating, ensuring stable motor operation and easy maintenance. The permanent magnet motor offers 5%–8% higher efficiency compared to asynchronous motors of the same capacity.

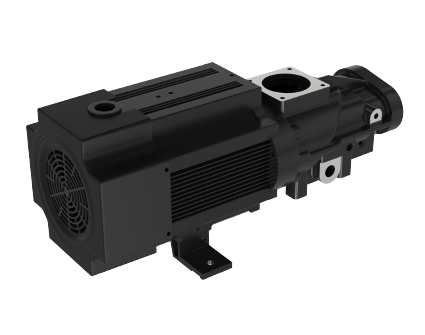

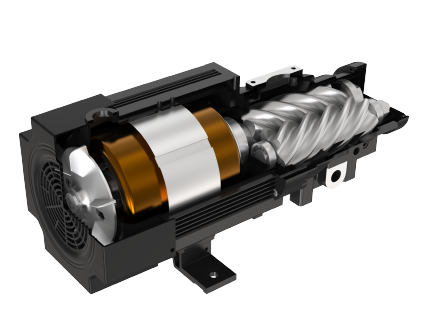

Coaxial Integrated Design

The airend and motor share a common shaft, eliminating the need for intermediate components such as central support brackets, couplings, pulleys, and gears.

This reduces transmission loss to zero and achieves 100% transmission efficiency.(Patent No. 2014103573965)

Energy-saving profile

Through the in-depth analysis of energy-saving demand and the continuous optimization of product structure, Xinlei's technical team has continuously upgraded the V series of profiles based on years of technical accumulation. This profile has become one of the more energy-efficient profiles in the screw profile industry with its high volumetric efficiency, reasonable drive contact points, and small area of the leakage triangle on the exhaust side.

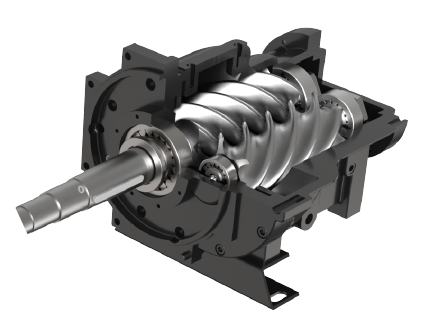

High-Efficiency Screw Airend

The airend features a new-generation 5:6 asymmetric rotor profile (Patent No. 2020233289687), upgraded from line sealing to band sealing technology to improve air output efficiency.

With a larger rotor diameter and lower rotational speed, it ensures low noise levels and a longer service life.

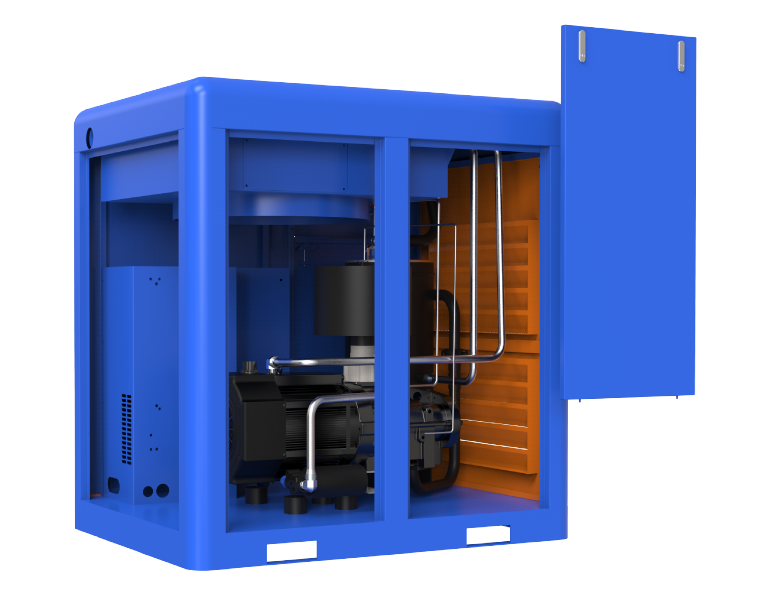

Machine structure

High-Efficiency Filtration System

High-efficiency oil-gas separator ensures oil content in discharge air is below 3 ppm.

High-precision oil filter guarantees optimal oil supply to the airend, providing better protection and extending its service life.

High-efficiency vertical air filter keeps the internal system clean, protecting the airend rotors and bearings from wear, and prolonging the life of the lubricating oil.

High-Efficiency Air-Cooled Permanent Magnet Motor

Excellent cooling performance with a unique heat dissipation design. Compact and lightweight structure, easy to maintain, and highly efficient thanks to the permanent magnet system. Its efficiency is 5%–8% higher than asynchronous motors of the same capacity.

The motor and airend share a common shaft design, eliminating the need for intermediate transmission components such as central support brackets, couplings, pulleys, and gears. This results in zero transmission loss and 100% transmission efficiency.

(Patent No. 2014103573965)

High-Efficiency Variable Frequency Drive (VFD)

Utilizes high-performance vector control technology with high speed accuracy and a wide speed range.

Provides high-speed output under vector control.

Delivers high torque at low speeds with minimal torque ripple.

Supports multiple types of motor drives.

Touchscreen Display

Real-time, intuitive display on-site, mobile, and computer, allowing users, service providers, and manufacturers to simultaneously monitor operating status, performance data, fault warnings, and more.

Online real-time monitoring of pressure, power, and temperature fluctuations.

Optional integration with XinZhiKong IoT platform.

High-Performance Cooling System

High cooling efficiency ensures 24-hour continuous operation even under high temperature and high humidity conditions.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
