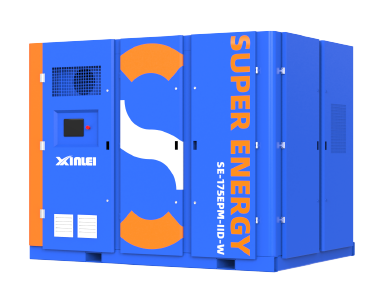

JF Series Water-Cooled Two-Stage Screw Air Compressor-JF Series Water-Cooled Two-Stage Screw Air Compressor-Xin Lei

Features Core Technology Machine structure IOT Technology Product Recommendation

Features

True Level 1 Energy Efficiency

Meets the national Level 1 energy efficiency standard (GB/19153-2019), saving over 30% energy compared to ordinary compressors.

Horizontal Two-Stage Compression

Features dual coaxial integrated structure with 100% transmission efficiency (Patent No. 2014103573965);
Horizontal layout with low center of gravity ensures more stable operation.

High-Efficiency Cooling

Water-cooled condenser uses water for condensation, offering higher heat transfer efficiency than air-cooled systems;

Smart IOT

Remote control via IoT, standard equipped with an air energy maintenance platform.

Core Technology

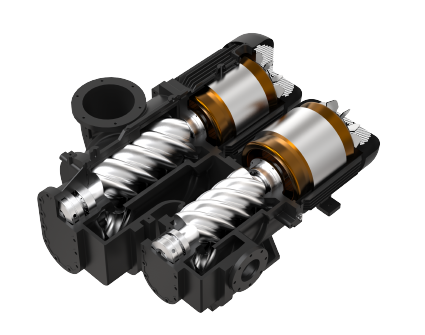

Two-Stage Air-Cooled Compression Unit

The rotor has no slip and requires no excitation current. It has no fundamental iron or copper losses in the rotor and generates less heat, reducing stator current and resistance losses. Its efficiency is 5%-8% higher than asynchronous motors of the same capacity, especially maintaining high motor efficiency at low speeds.

Synchronous Motor Stepless Speed Regulation

Electronic speed regulation is applied in the two-stage compression, enabling synchronous stepless speed control for both first and second-stage units to meet various requirements. The motor efficiency is 95.5%, saving 4.1% energy, providing high torque and smooth operation.

Energy-Efficient Line

Through in-depth analysis of energy-saving needs and continuous optimization of product structure, Xinlei's technical team has been upgrading the V series line with years of technical expertise. This line is one of the most energy-efficient screw compressor lines, featuring high volumetric efficiency, reasonable drive contact points, and a small area of the discharge side leakage triangle.

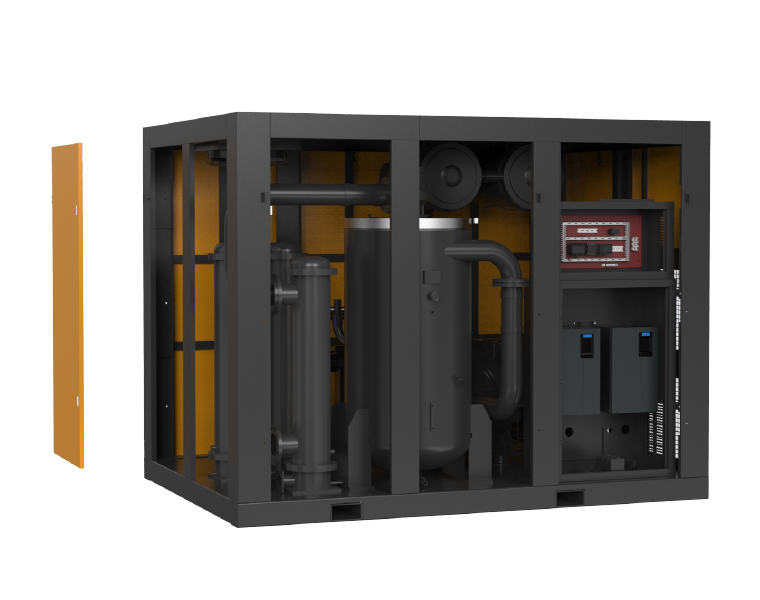

Machine structure

High-Efficiency Filtration System

High-efficiency oil-gas separator ensures oil content in discharge air is below 3 ppm.

High-precision oil filter guarantees optimal oil supply to the airend, providing better protection and extending its service life.

High-efficiency vertical air filter keeps the internal system clean, protecting the airend rotors and bearings from wear, and prolonging the life of the lubricating oil.

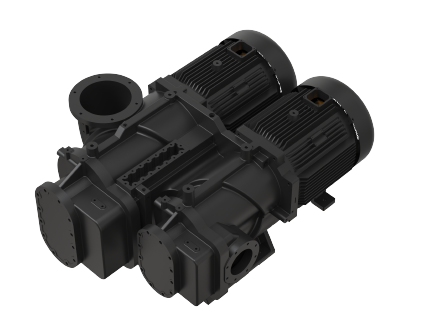

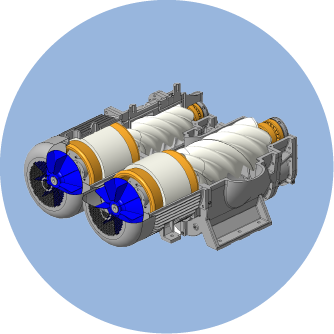

Two-Stage Air-Cooled Compression Unit

Horizontal structure with low center of gravity, low vibration, and more stable operation;

Integrated main unit and motor structure with 100% transmission efficiency (Patent No. 2014103573965);

Lower compression ratio compared to single-stage compression, less internal leakage, inter-stage oil injection cooling, approaching isothermal compression;

Achieves synchronous stepless speed regulation to meet various demands, with motor efficiency of 95.5%, 4.1% energy saving, high torque, and smooth operation.

Dual Inverter System — Constant Temperature & Constant Pressure

The electrical control cabinet is divided into independent hot and cold zones, enhancing the cooling performance of the inverters;

An enlarged radiator with anti-rust and anti-corrosion surface coating ensures easy cleaning, extended service life, and stable temperature control;

Low oil temperature prevents oil circuit coking, carbon buildup, and overheating issues;

The unit operates smoothly with extended lifespan, effectively avoiding shutdowns caused by high temperatures.

Intelligent Control System

Simultaneous intuitive display on-site, mobile phones, and computers, with synchronized views for users, service providers, and manufacturers showing operating status, operational data, fault warnings, etc.;

Real-time online monitoring of pressure, power, and temperature fluctuations.

Cooling System

Water, as a cooling medium, has a high specific heat capacity, enabling rapid and effective temperature reduction of the screw compressor to ensure efficient operation.

It features a compact size, low noise, and stronger adaptability to various environments.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
